The CARTEK Sequential Shift Light is a compact, dashboard-mounted display designed to indicate the optimum time to change gear for maximum engine performance.

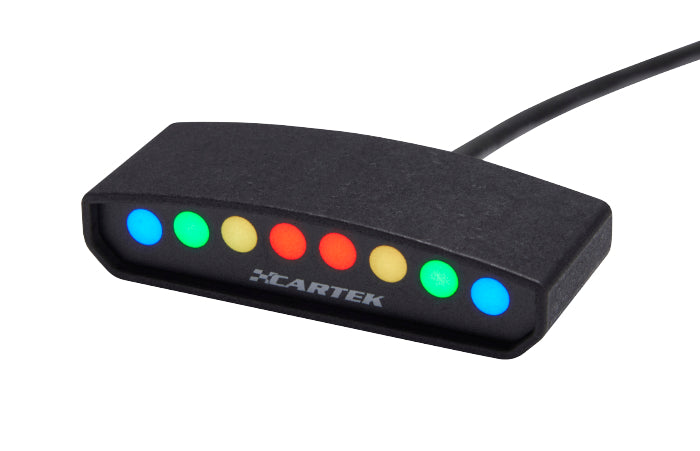

Featuring eight multi-colour RGB LEDs, the display progressively illuminates as engine speed approaches the selected shift point, giving the driver a clear visual warning before reaching the rev limiter.
- 8 multi-colour RGB LEDs

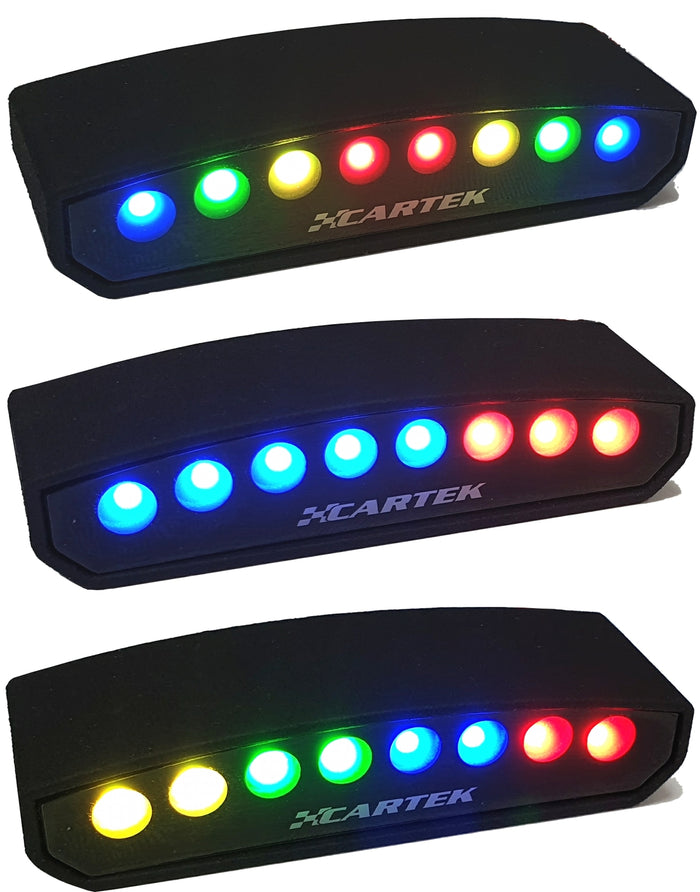

- 6 selectable shift light patterns – linear or converging
- Adjustable lower and upper RPM settings
- Adjustable day and night LED brightness
- Rear push-button configuration
- Fully potted construction for motorsport environments
- Compact dashboard-mounted design
- IP64 rated enclosure
Specifications:

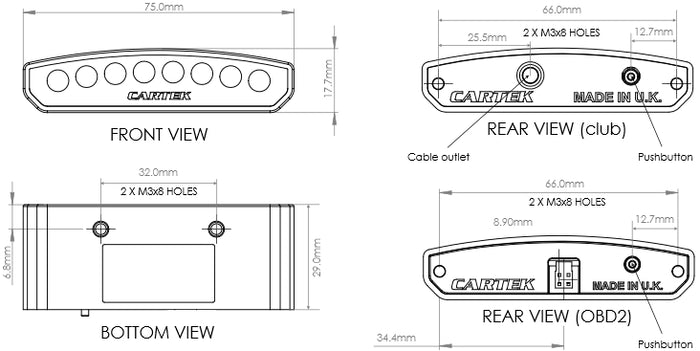

| Size | W: 75mm, H: 17.7mm, D: 29.0mm |
|---|---|
| Weight | 55g |
| Operational Voltage | 7V – 18V |
| Operating Temperature | -10°C to +85°C |
| Storage Temperature | -40°C to +125°C |
| Enclosure | PA 2200 Nylon, fully potted, IP64 rated |
| Current Draw | 0.5A |
Downloads:
| Document | Link |
|---|---|
| Installation & Operating Instructions | Click Here |
| Technical Data Sheet | Click Here |
